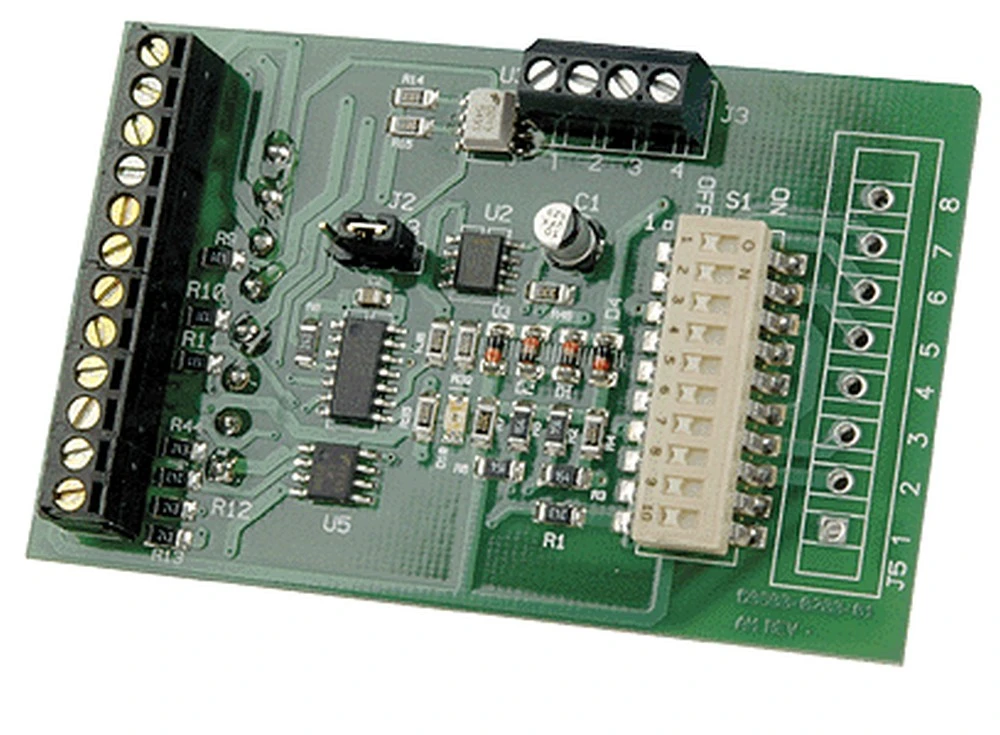

DCC Specialties Hare Version 2 – DSPHARE2

Plugs Directly on to Tortoise™: Simplifies wiring and reduces failures.
Auto Return: Automatically returns the points after a preset interval for any operational event.
Auto Throw™ Automatically throws points when a train is approaching against the points!
Auto Throw™ Timer: Provides for timing the auto throw function to prevent two trains from colliding.
Smart Route™ Sets up to 13 routes by simple address programming in addition to the primary decoder address.
Dispatcher Over-Ride™: Allows the Dispatcher to lock out all other switch commands.
Lock Block Protection: Overrides the Hare’s operation if a designated block is occupied.
Locked Route Control™: Provides for only one route direction response for either a Throw or Clear command.
Switch Speed Control™: Allows you to control the Tortoise™ motor speed.
Smart Default Ops™: Upon Power-up, HARES return to either last thrown position or a programmed default.
Operate Switch Signals or Panel LED Indicators.
Manual Pushbutton or Toggle Switch: Allows single button or toggle switch manual control of the points.
System Reset: A single CV command sets all Addresses and CVs to original factory values.
Direct Current Ops: The Hare will operate on DC using Manual Push Button Control Option.
Semaphore Operations: Allows the use of a Tortoise™ for triggered control of a signal head or crossing gate.
Automates Reverse Loop Turnouts. Using Auto Throw feature.
Feedback, Turnout Position Reporting to Digitrax LocoNet, Lenz ExpressNet and NCE CabBus.
