ESU LLC LokSound 5 Micro DCC 8 Pin (Generic) Ready For Programming

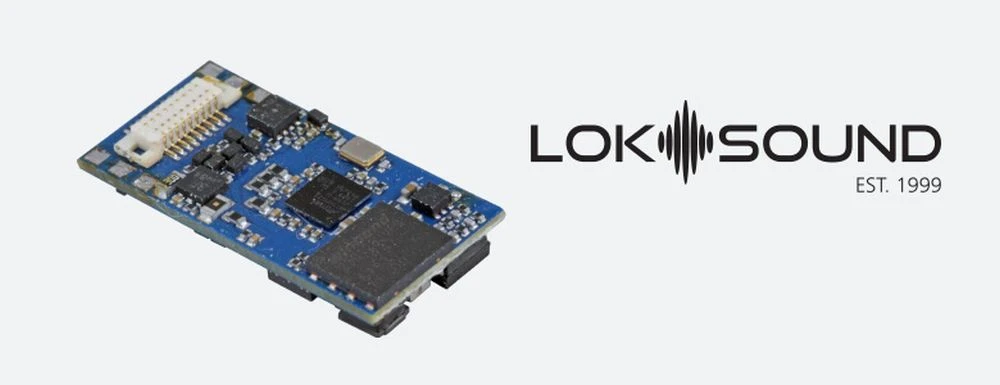

The LokSound 5 micro is a ?little wonder?: With only 21mmx10mm footprint, it is by far one of the smallest LokSound decoders we?ve ever built. Thus it should fit into all N gauge and TT vehicles, but is also suitable for small H0 vehicles. All LokSound decoders are equipped with a Next18 interface and are available with adapter plugs to suit all popular digital interface types. The decoder is supplied with an 11mm x 15mm sugar cube speaker as well as a sound enclosure set.

The LokSound 5 micro DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts. Please note the LokSound 5 DCC decoder does not come with a speaker.
Operating modes

The LokSound 5 micro is a true multi protocol decoder. It supports DCC as well as Motorola^®, Selectrix^® and M4. Of course it supports 14 through to 128 speed steps as well as 2 and 4 digit addresses in DCC format and up to 32 functions. Thanks to RailComPlus^® the decoders register themselves fully automatically on suitable command stations.

This decoder supports all DCC programming modes and thanks to RailCom^® you may read out the CV values on the main, provided you have a command station supporting RailCom^®. There are utility registers for command stations that only facilitate programming of CVs ranging from 1 to 255.

Motorola^® users benefit from up to 28 speed steps for 255 addresses. Three additional Motorola^® addresses facilitate triggering of 16 functions. An integral programming mode even allows programming with the good old Control Unit 6021.

The M4 protocol supports the automatic registration on mfx^® compatible central units.

The LokSound decoder supports the M?rklin^® braking sections just as well as the ZIMO^® HLU braking commands or the Lenz^® ABC system. Braking with DCC brake generators or with DC is also possible. Furthermore the locomotive with a LokSound will come to a halt when a Selectrix^® braking diode is switched into the circuit. The ABC push-pull feature enables the automatic commuting between two stations.

The LokSound 5 micro decoder is also suitable for analogue DC and AC (!) layouts.
Sound

The LokSound 5 micro decoder can reproduce up to 10 channels simultaneously. Each channel offers up to 16 Bit / 31250 kHz and thus we have finally achieved hi-fi sound quality on your layout. For all practical purposes one cannot detect any difference to the original. A double class D audio power amplifier with up to 3W output power feeds the speakers with a permitted impedance of 4 ? 32 Ohms. The huge 128 MBit sound memory assures sufficient storage capacity.

The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles.

The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles.
Functions

Despite its small dimensions the LokSound 5 micro decoder has at least 6 amplified function outputs as well as one logic output. There are two more logic outputs on the Next18 interface, which alternately may be employed to control RC servos. Of course, all important lighting functions are supported. The brightness of each output may be adjusted separately. The decoder supports the automatic push and pull movements ? known as the coupler waltz – required for reliable operation of digital couplers such as the ones by ROCO^® and Krois^® as well as Telex^® couplers.
Motor control

Motor control of the LokSound 5 micro has been further improved. A variable PWM pulse frequency ranging from 10 kHz to 50 kHz assures perfect silent operation, particularly for coreless motors. Thus the typical hum is a thing of the past. Load control can now be adjusted with up to 10 separate CVs and thus will manage even the most difficult cases. The unique ?Auto Tune? function facilitates the automatic calibration of the decoder to perfectly match the motor. The LokSound 5 micro decoder supplies sufficient motor current (up to 0.75 A) for the intended applications.
LokSound 5 micro DCC

The LokSound 5 Micro DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts.
